Your case.
Your style.

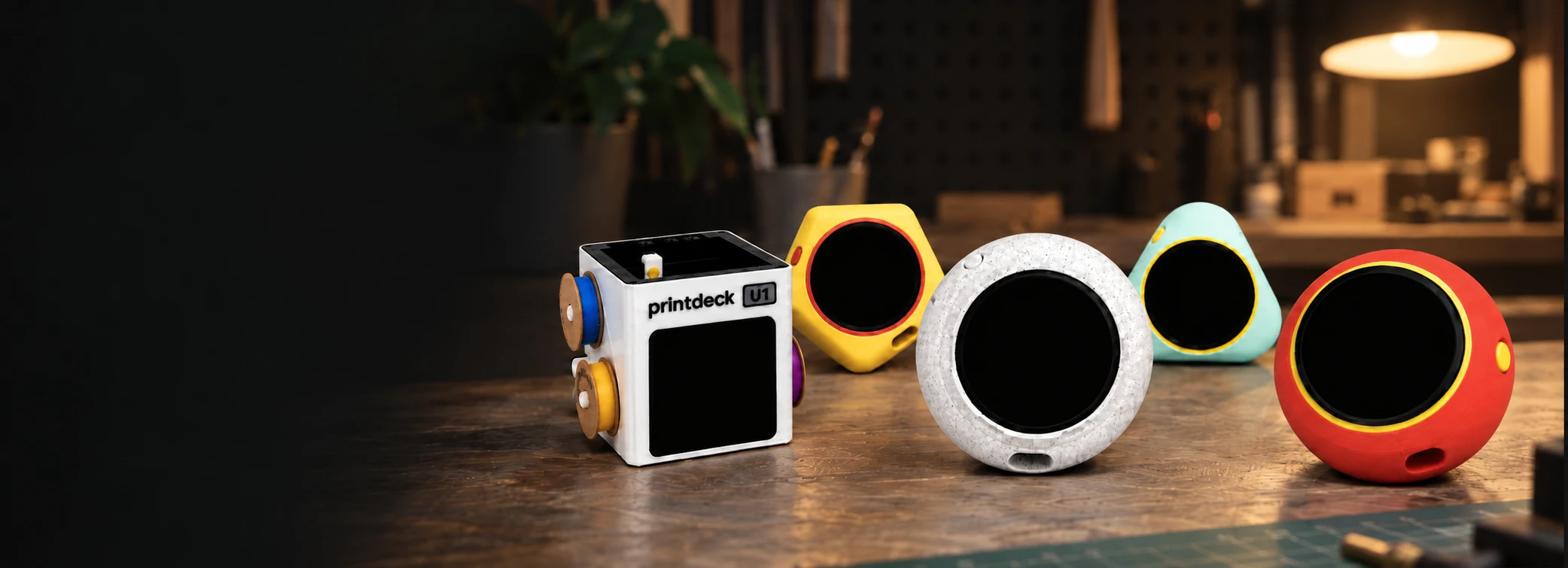

Nine printable designs for round and square displays. Choose your favourite and make it yours.
The PrintDeck
AMOLED 1.75″The PrintDeck turns your round display into a little desk robot. Pose its movable arms, hands and legs, and let the screen become its eye. Print the armour and joints in your favourite colours.




Made for the Waveshare ESP32-S3-Touch-AMOLED-1_75, with a rear USB-C connection and room for an optional battery and speaker. Find the print profile, parts list and assembly notes on MakerWorld.

PrintDeck needed a face.
After many hours of working on PrintDeck, we came to a simple conclusion: it needed a face of its own. Something you could recognise at a glance, sitting beside your printer.
The round display gave us a starting point: an eye. We built a little robot around it, with movable arms, hands and legs so you can give it a pose that feels right on your desk. The animations on the screen give that face its expression.
That is how The PrintDeck came to life. A familiar face for the project, and a case you can print in your own colours and make part of your workspace.

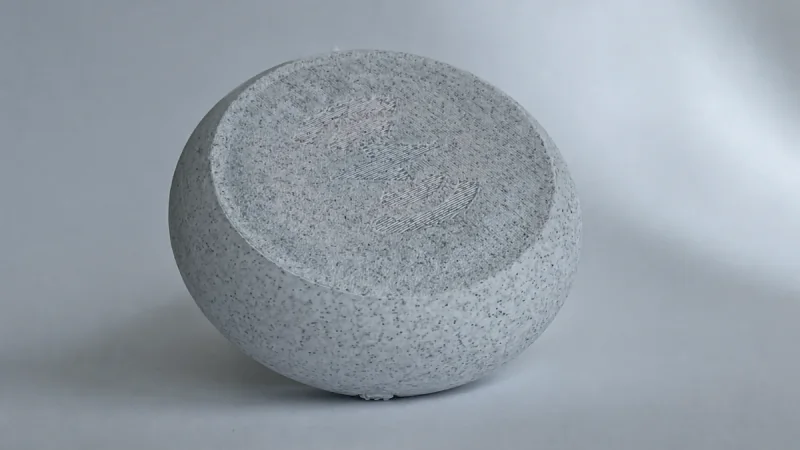

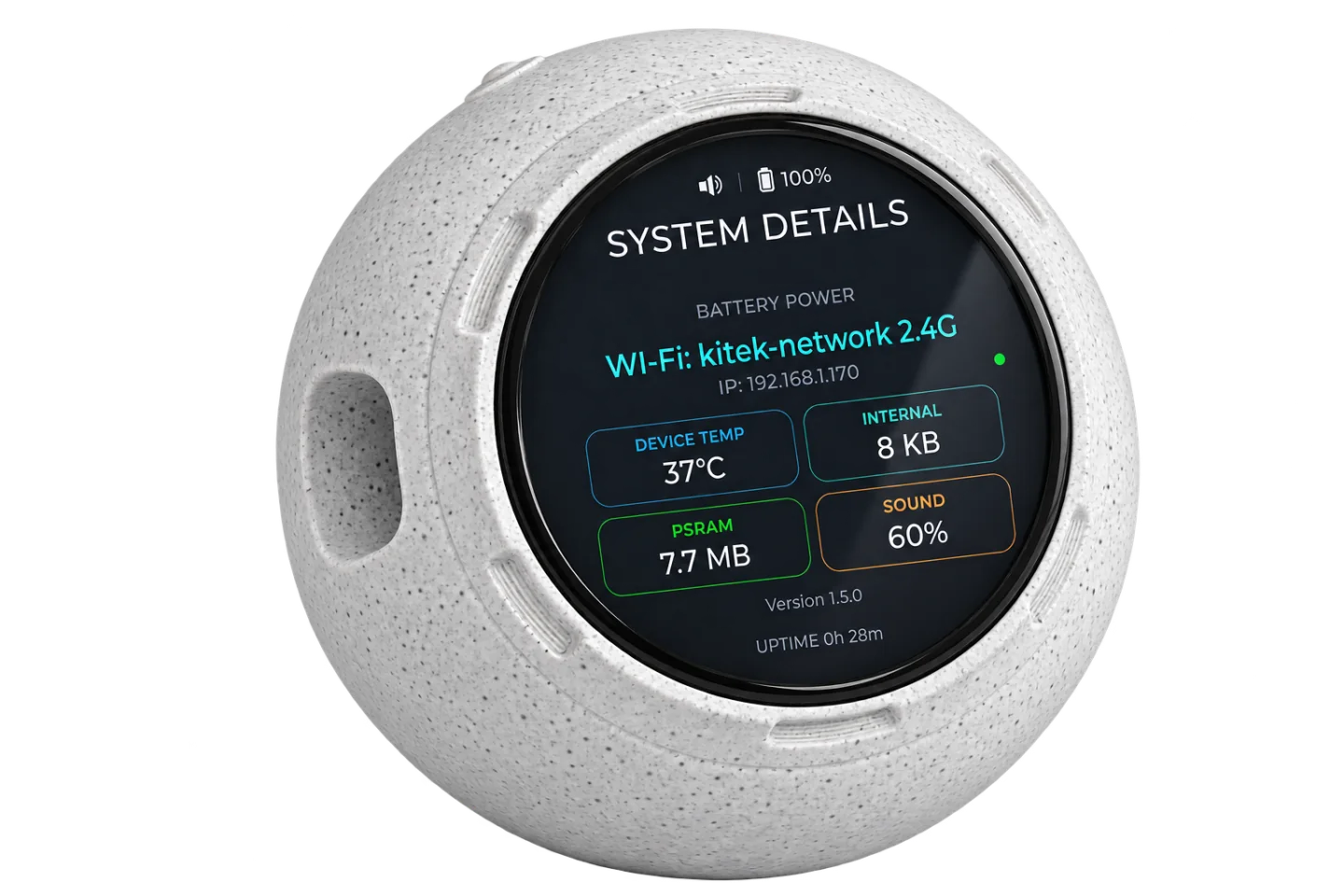

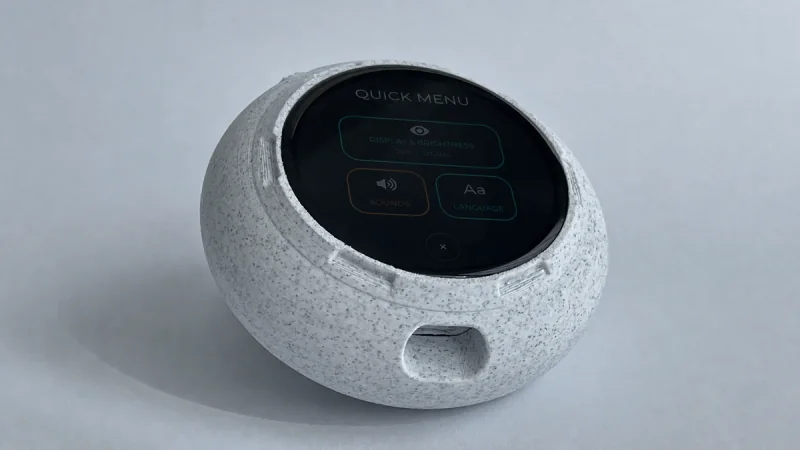

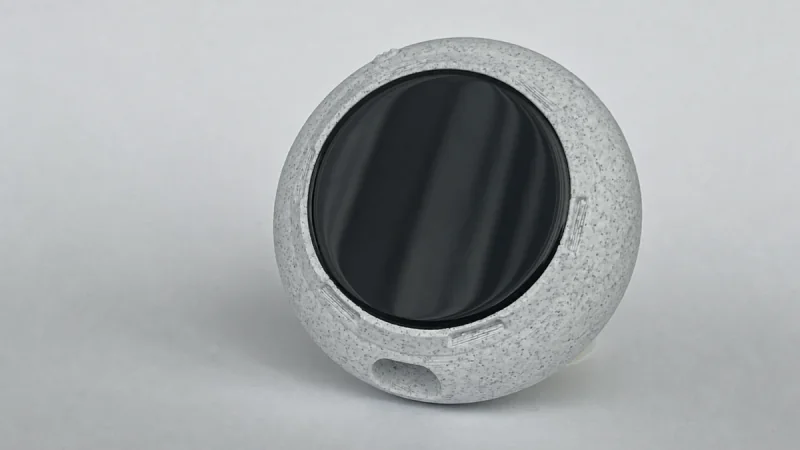

The Riverstone

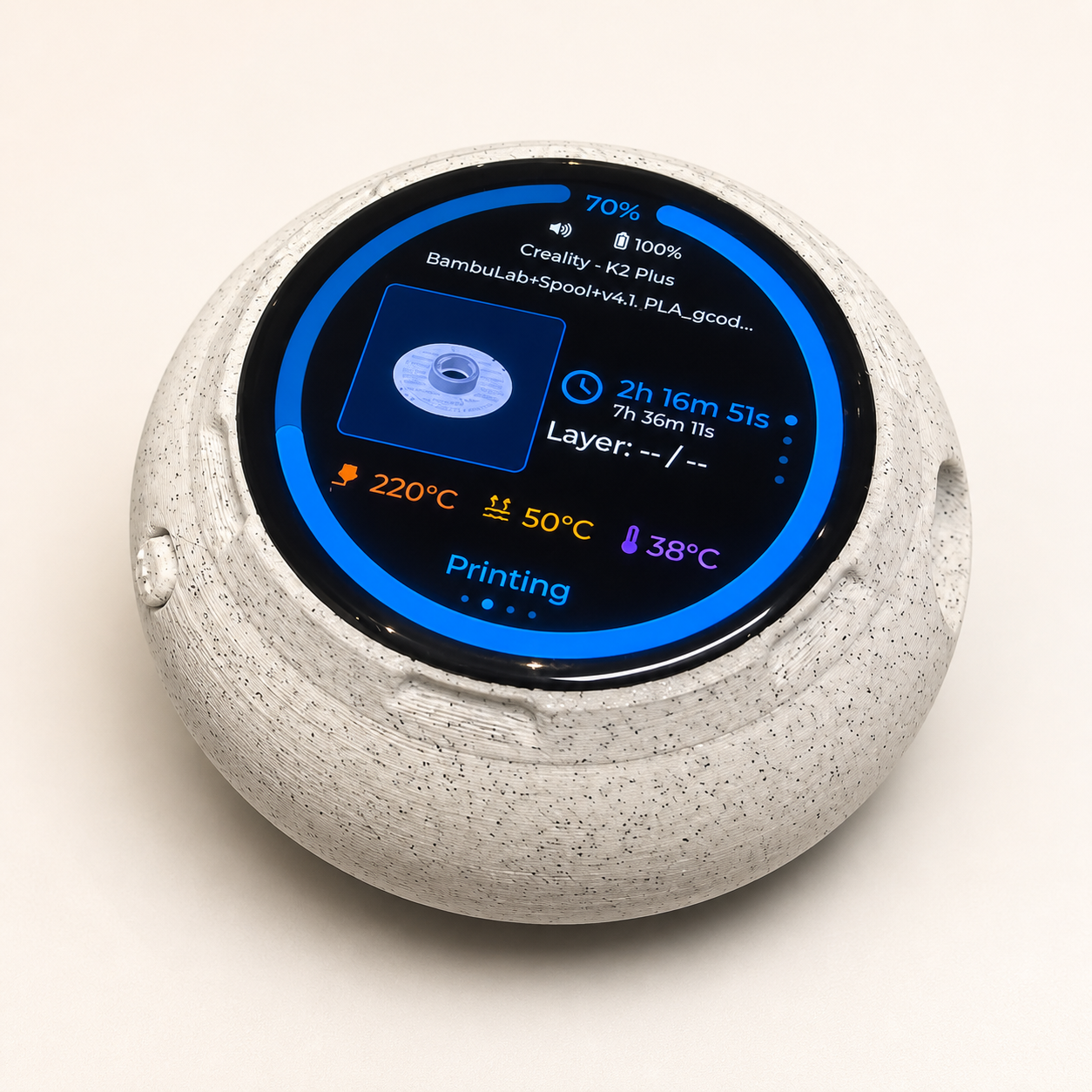

AMOLED 1.75″The Riverstone is a compact round case designed to move between your printer, desk and workshop. MagSafe-compatible Qi charging keeps cables out of the way, while built-in magnets attach it securely to a refrigerator, tool cabinet or other metal surface.




Inspired by a river stone.
PrintDeck began as a bare display connected to the printers I used while developing the software. I often held the screen in my hand while I worked.
Near dawn after one long development session, I pictured a smooth river stone. What if the monitor could rest in the hand like a pebble—calm in shape and comfortable in the palm?
The idea depended on two features: wireless charging and battery life measured in days, so long prints would not mean constant charging; and strong built-in magnets, so the device could sit securely on a refrigerator or metal cabinet.
Reaching the final shape took many prototypes, partial prints and fit adjustments. Material mattered too: marble-effect filament gave The Riverstone the quiet, stone-like character I was looking for.
“The first time I held the finished case, I knew: this is it.”
Today, that simple shape holds a complete PrintDeck monitor. It is easy to pick up and use, while keeping the printer information that matters close at hand.

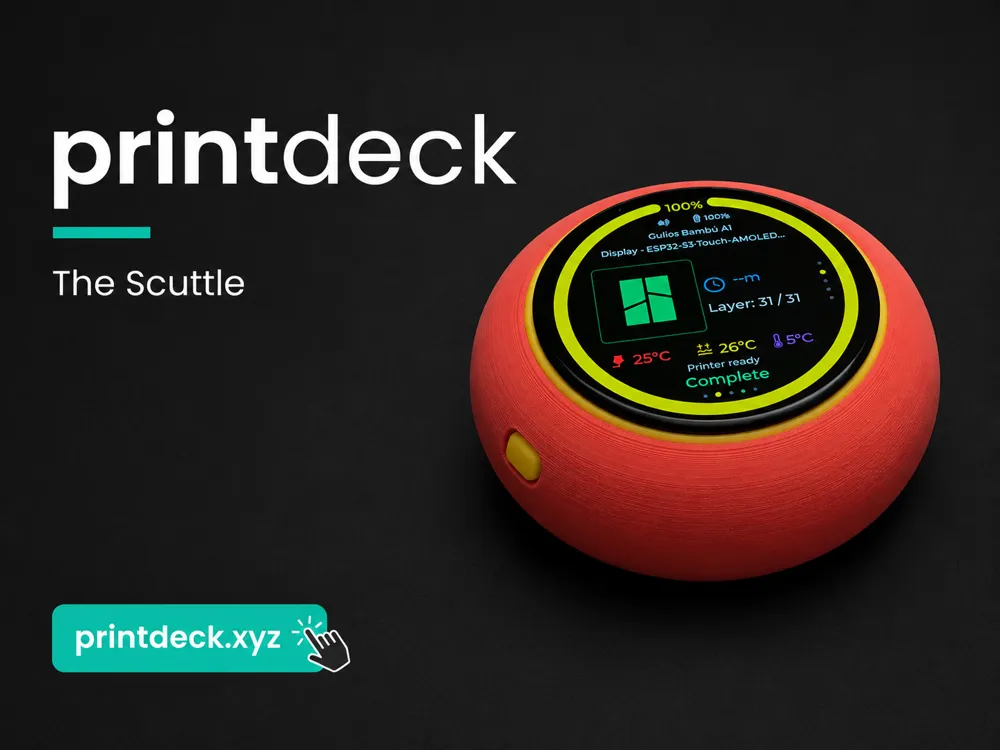

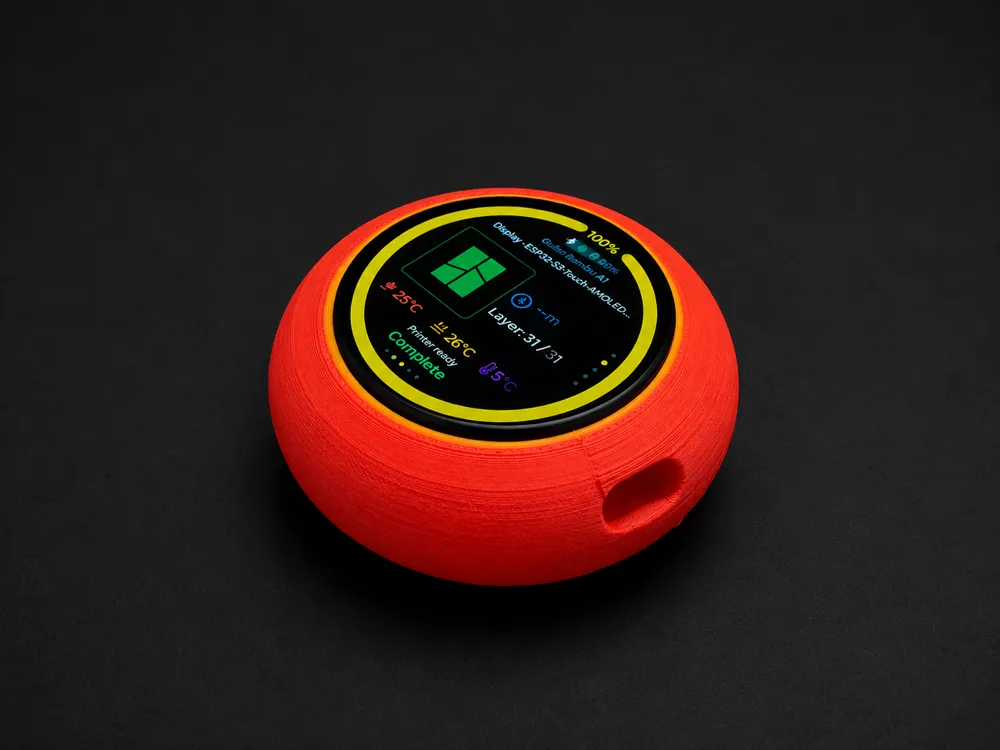

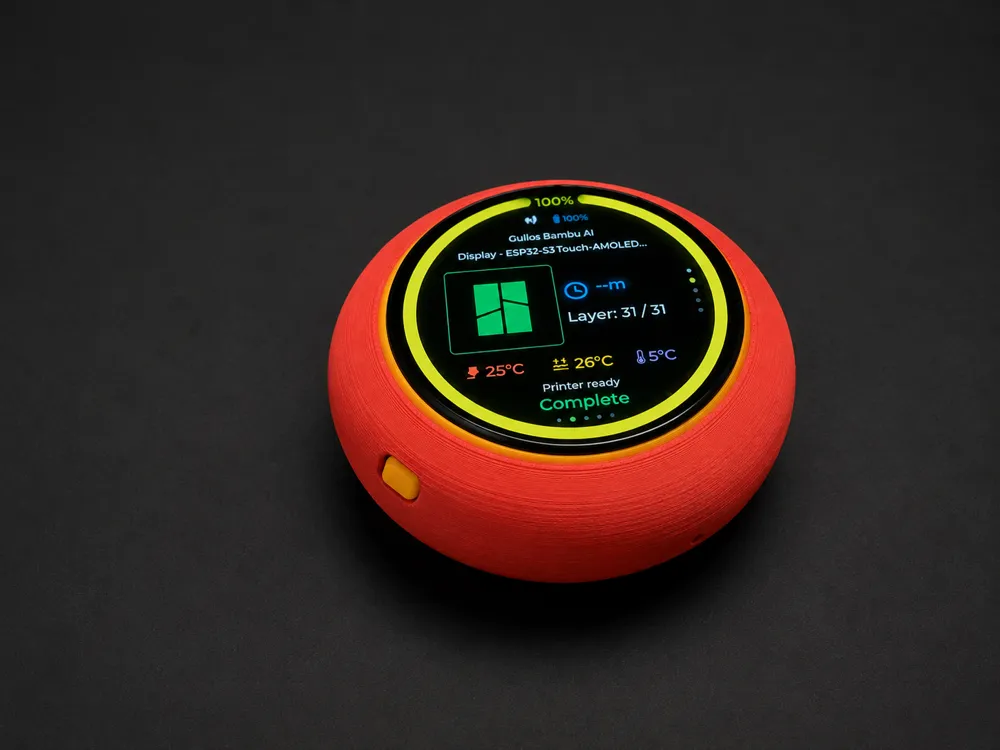

The Scuttle

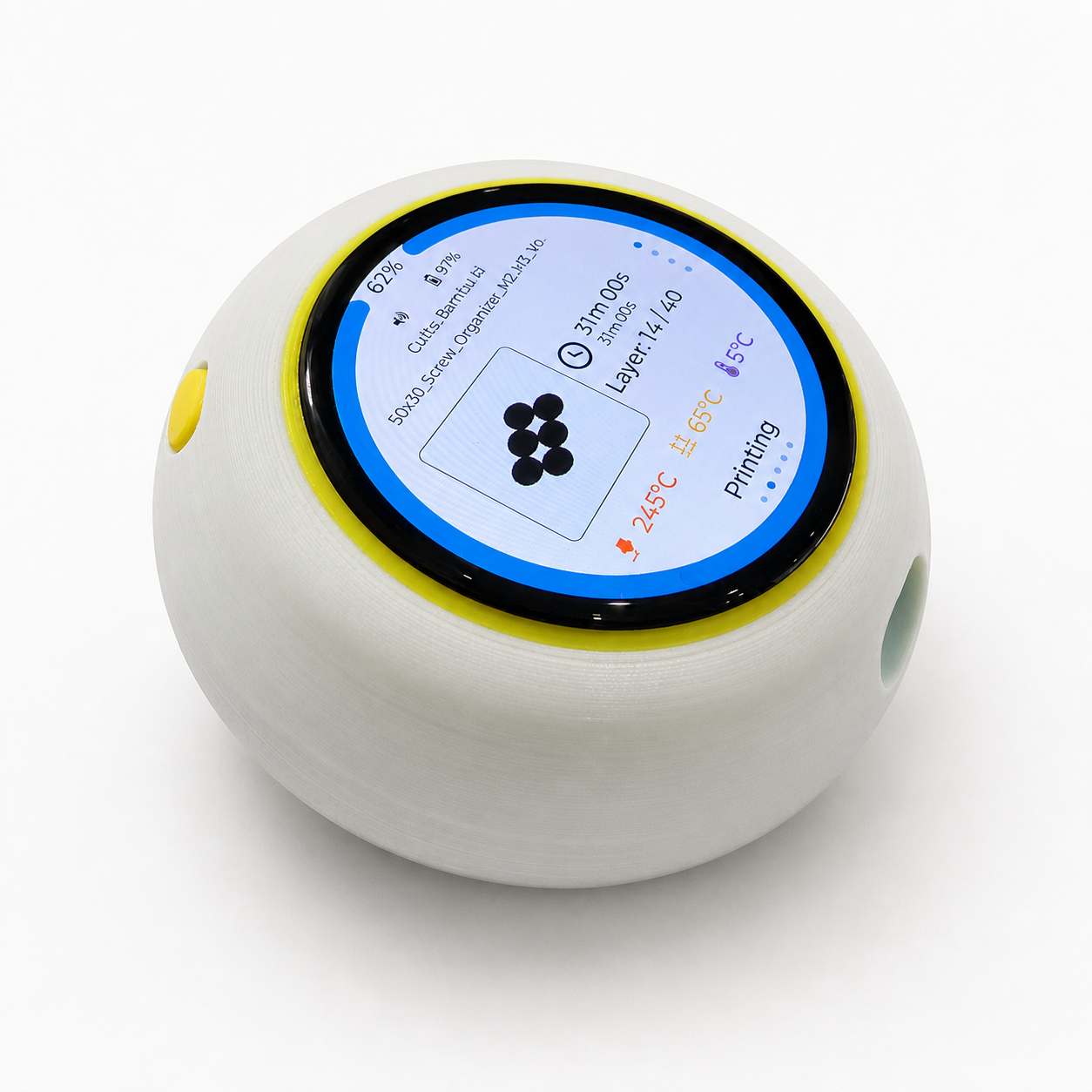

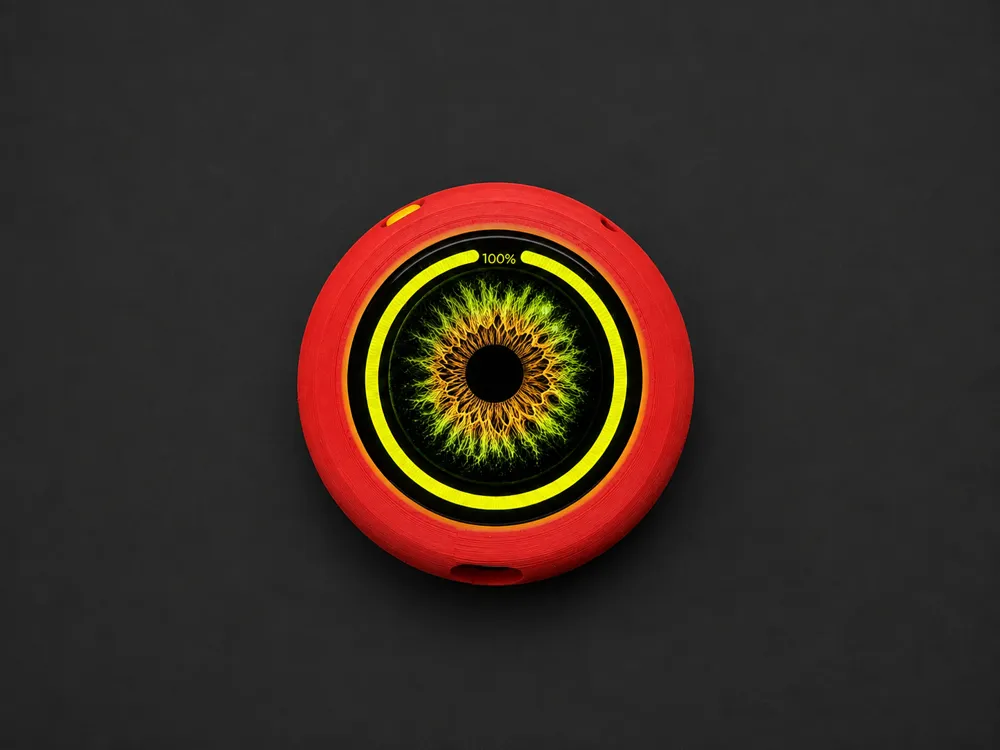

AMOLED 1.75″The Scuttle keeps the compact, rounded character of The Riverstone but uses a roomier, two-part construction. The case opens from the top and bottom for easier assembly and servicing, with dedicated mounts for the display and Qi charging coil.




More room. More colour.
The Riverstone leaves almost no unused space around its electronics, charging hardware and battery. I wanted an alternative with more room inside—and more freedom to use colour.

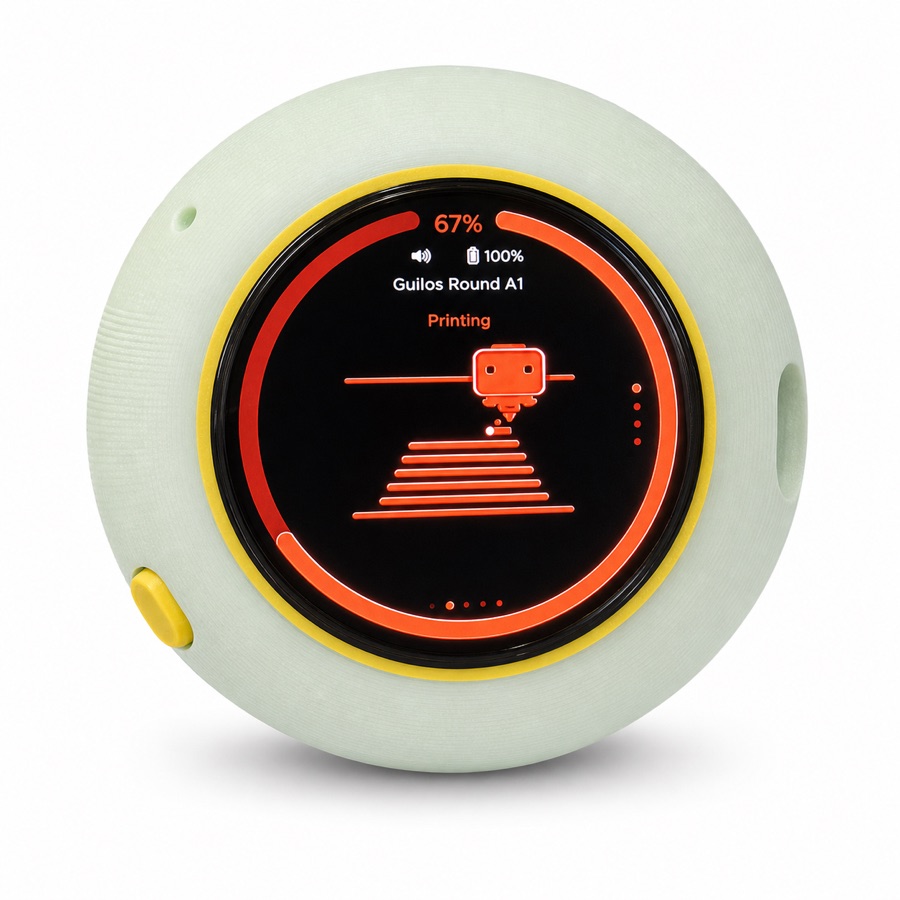

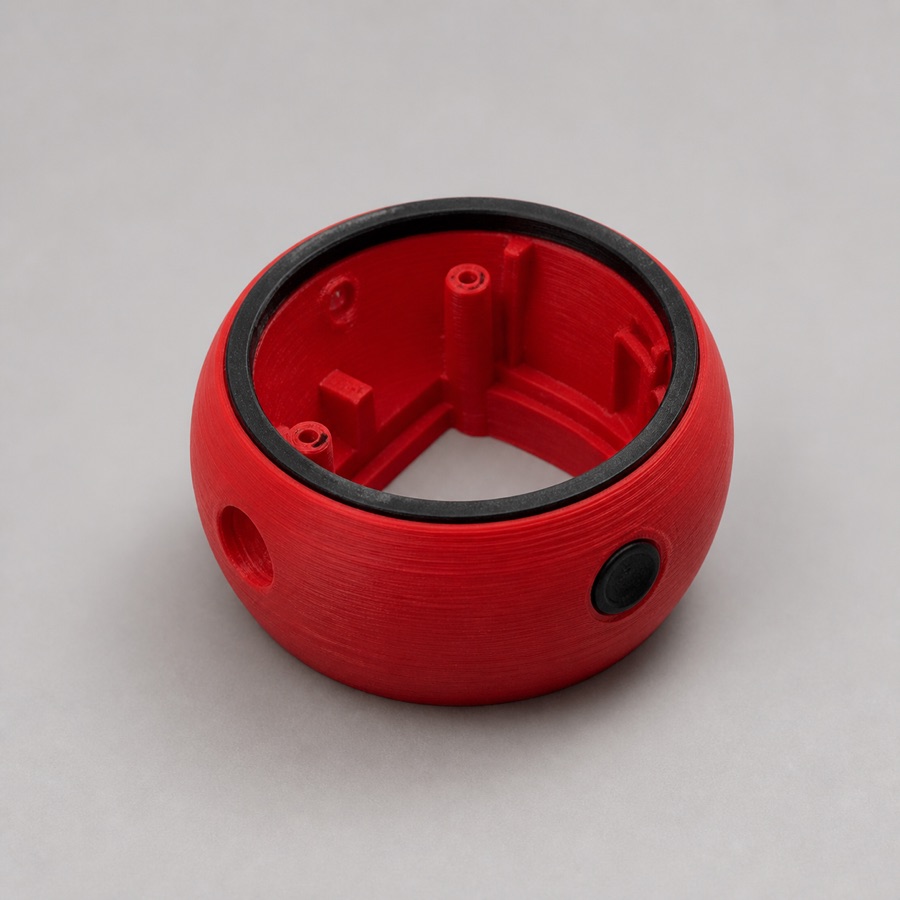

I enjoy printing with distinctive filaments, so The Scuttle uses a fitted display collar and interchangeable colour accents. Translucent materials even make playful, candy-like combinations possible.
The case can be opened from either side: remove the screwed-on base for access from below, or use the upper opening to work from above.
Developing the case on Bambu Lab printers took many prototypes and several construction variants. The finished 3MF turns that work into a straightforward print with a clean, repeatable result.
The Scuttle shares The Riverstone’s round format, but its internal construction and assembly are entirely different. Five strong rear magnets and wireless charging keep it just as easy to move around.
Material and finish define its character. Fuzzy Skin texture, translucent filament and multicolour accents leave plenty of room to experiment.

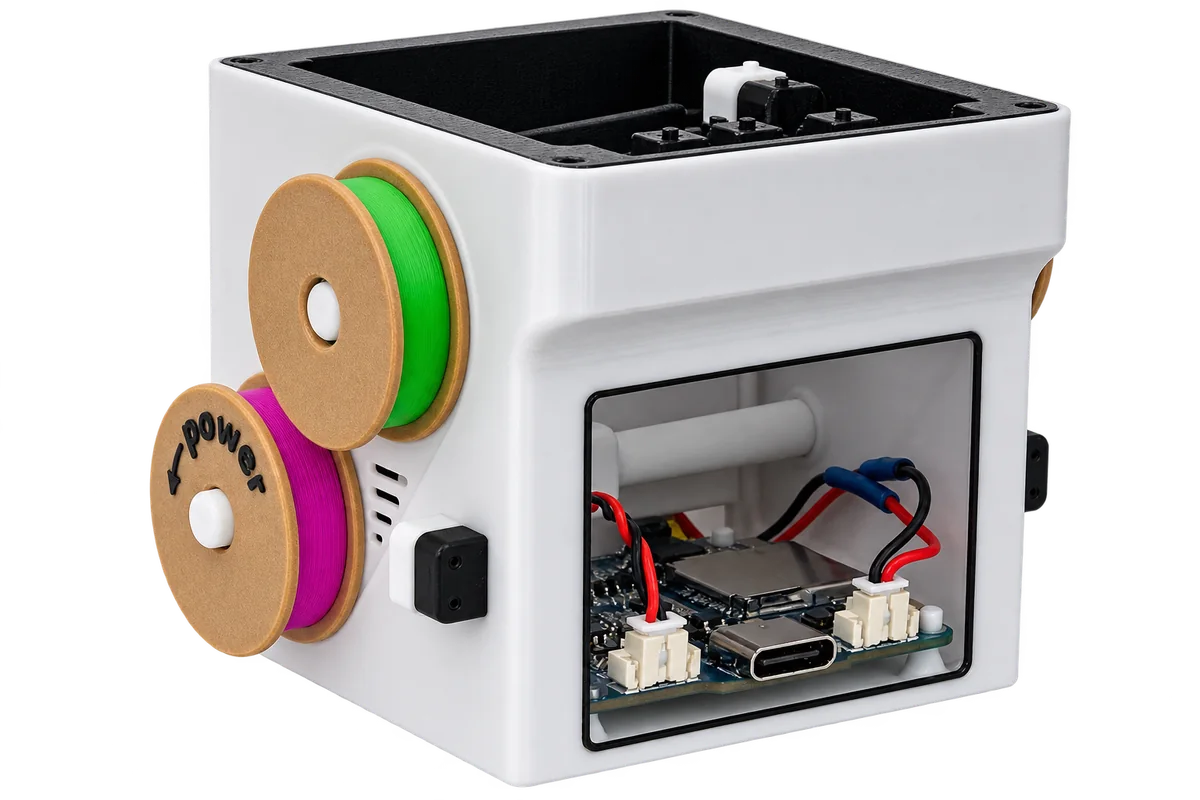

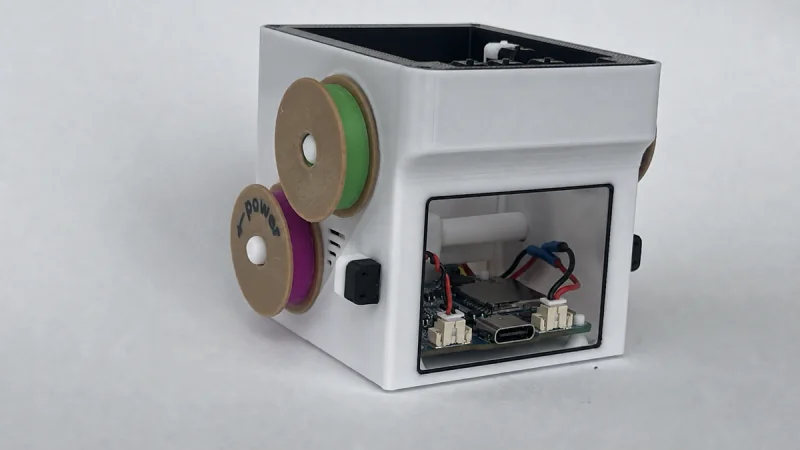

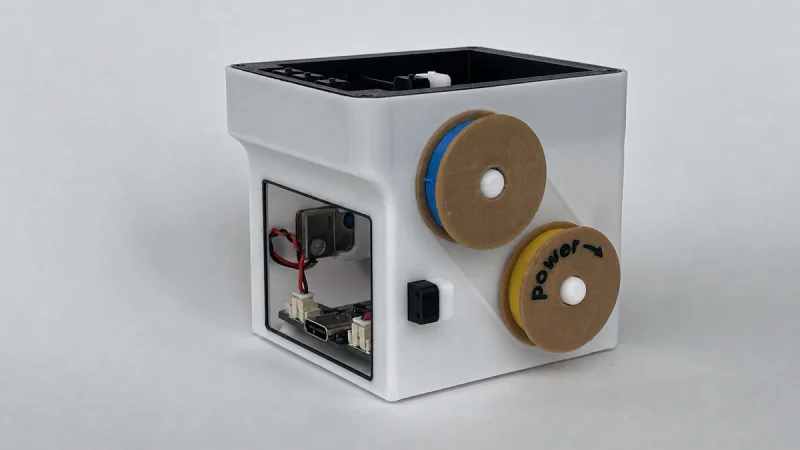

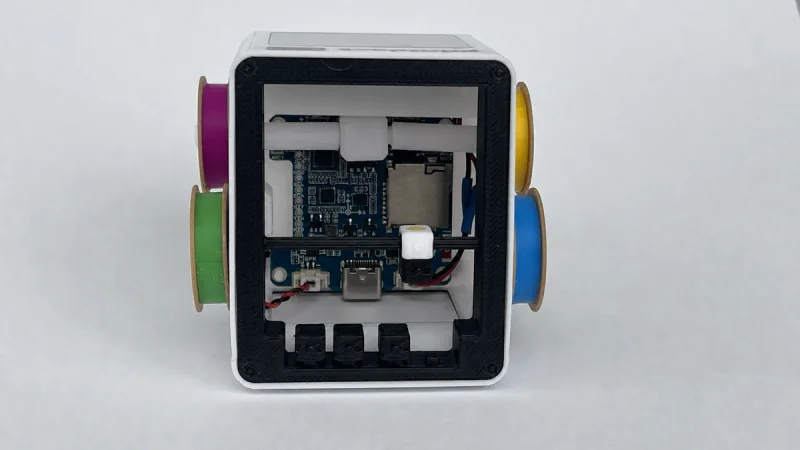

Snapmaker U1 Mini case

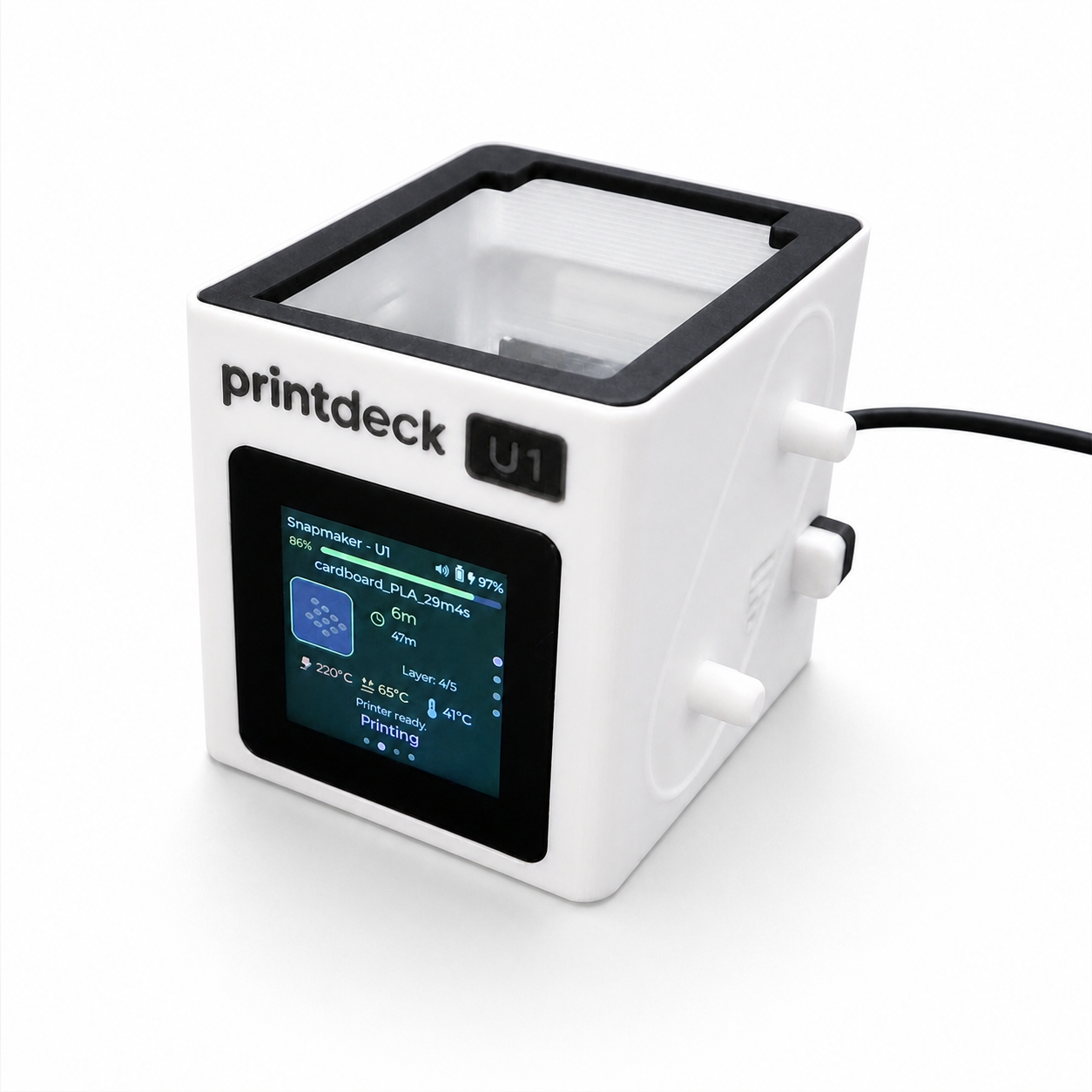

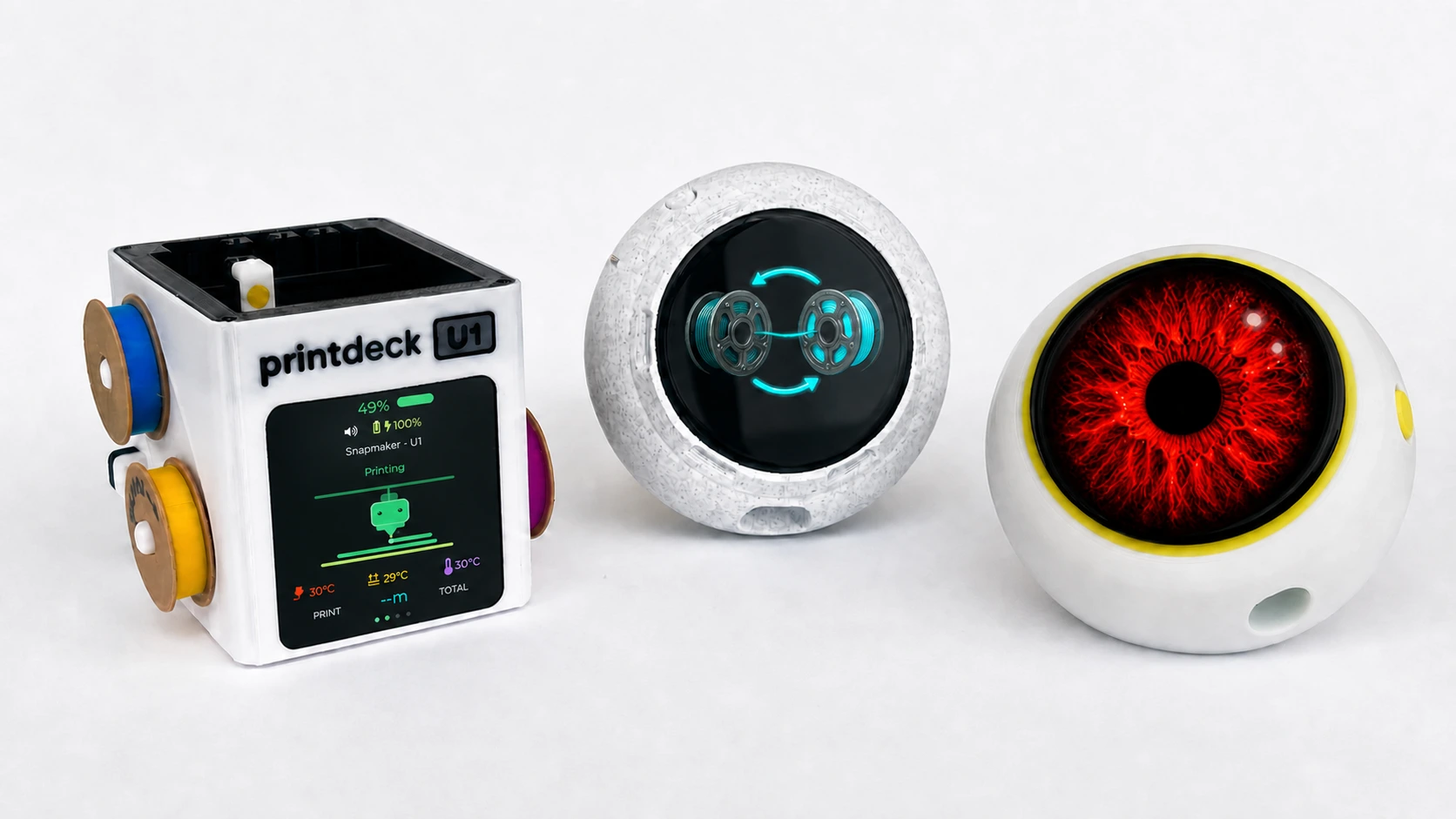

LCD 1.54″Inspired by the tool-changing Snapmaker U1, this miniature case echoes the printer’s boxy shape. The square PrintDeck screen becomes a compact external console for live print, tool and temperature information.




From scale model to monitor.
My Snapmaker U1 came from the first Kickstarter batch. Its design caught my attention before the printer was even released, so I used the available photos to create U1 Mini models at 1:5 and 1:10 scale.
The production printer exceeded my expectations in both build and print quality. Although I own other printers, the U1 became the one I use most and introduced me to the Snapmaker community. Today, a friend and I run a Facebook group for Polish U1 users.
When PrintDeck began, the U1 Mini case felt like an obvious companion project. It became both a useful monitor and my favourite gadget—something I now consider part of the U1 setup.
I designed the case to be easy to print and refined the 3MF until the process became simple: select the file, start the print and enjoy the result. It has fewer details than the original scale models because it serves a different purpose, but it keeps the open structure and unmistakable U1 character.
Reaching the final version took many prototypes, partial prints, small adjustments and plenty of filament. I print this case—and the other PrintDeck designs—on Snapmaker’s official smooth plate. Its cast-like first layer is one of the best finishes I have achieved on any build surface.
When I cook, PrintDeck sits on the refrigerator; at night, it moves to the bedside table. I no longer walk back to the printer just to check its status. A phone app can show similar data, but a dedicated physical display feels completely different.

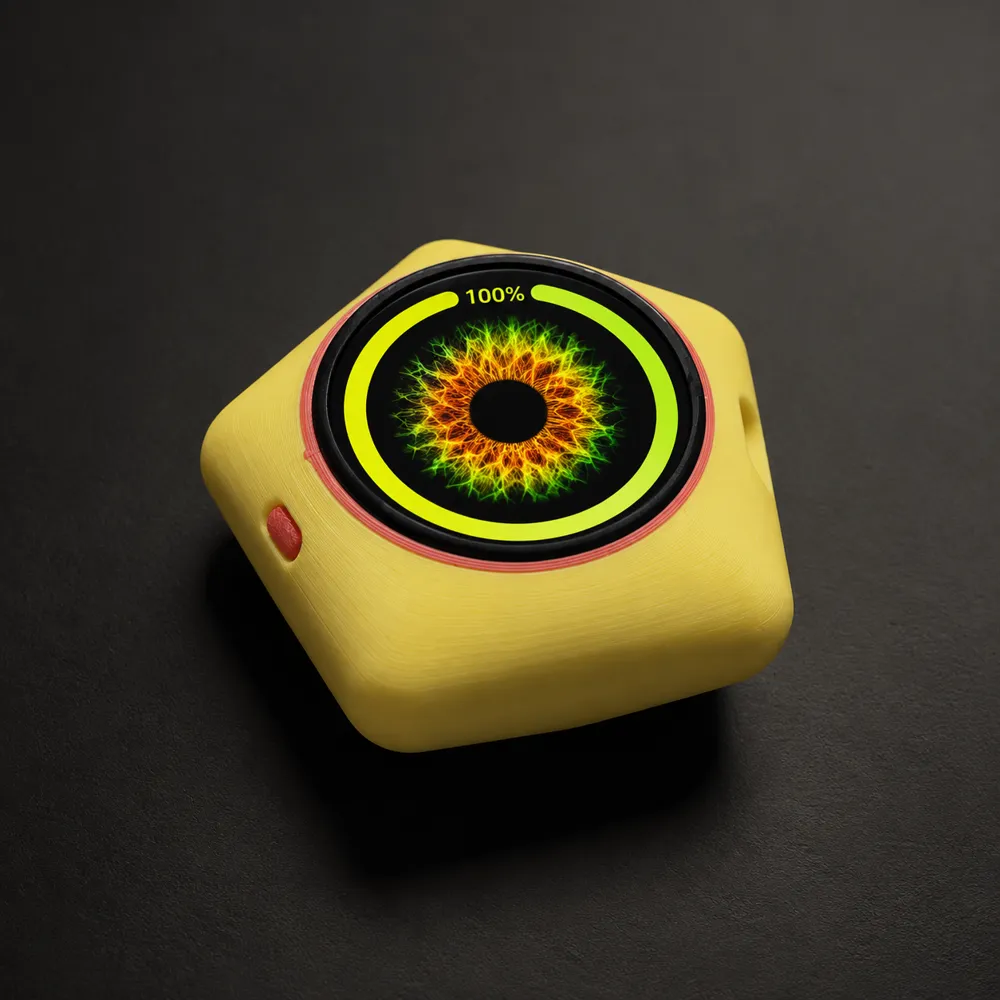

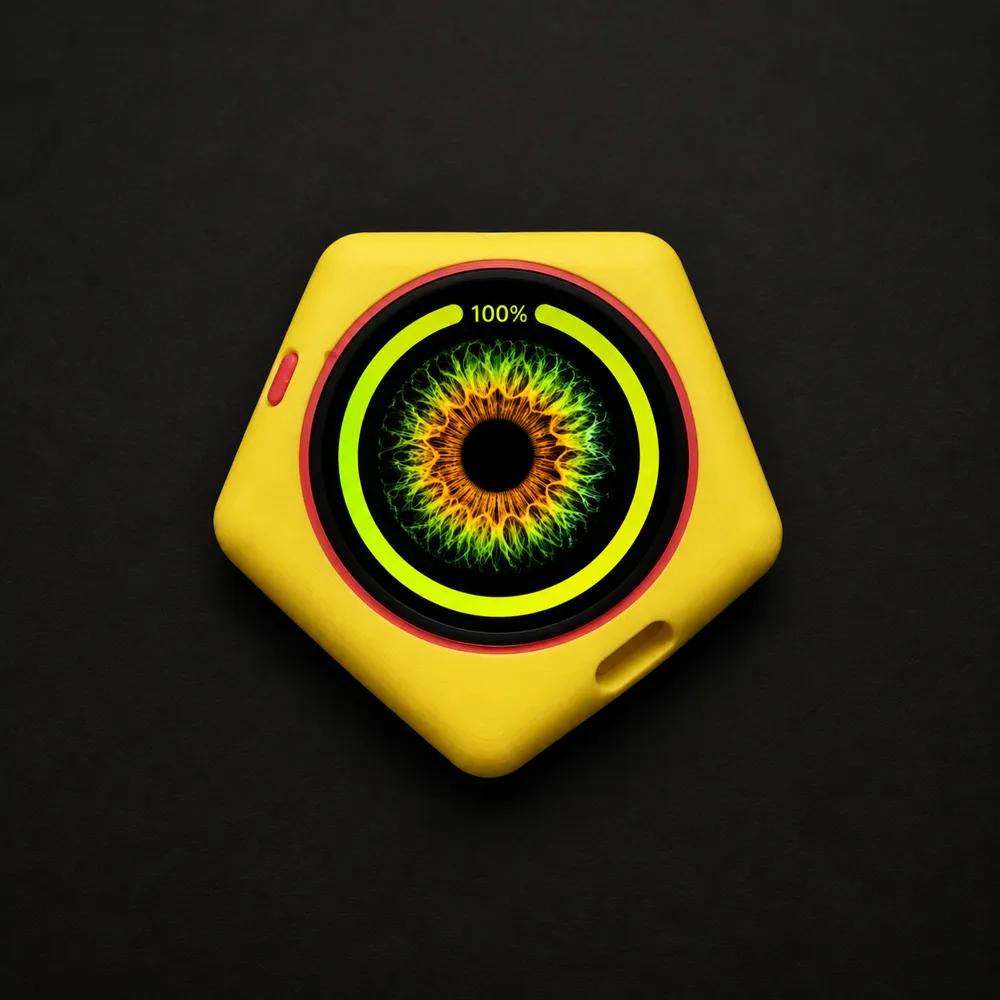

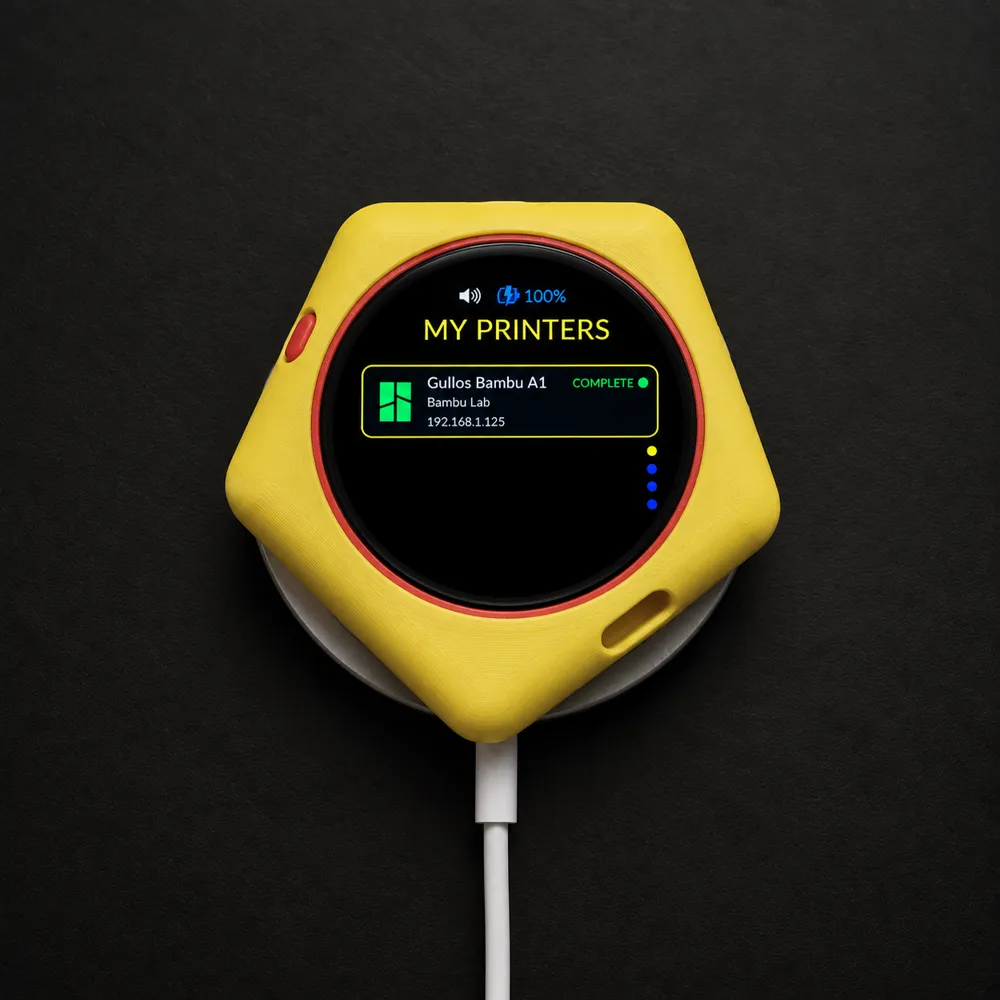

The Cinquefoil
AMOLED 1.75″A five-petalled frame for your PrintDeck. The Cinquefoil pairs a soft, flower-inspired shape with a separate display collar and button for contrasting colours. Access from both sides makes assembly and servicing easier.




Power it through USB-C, or add a protected LiPo battery and Qi receiver for wireless charging. Five optional rear magnets let it attach to a steel surface. The print profile and assembly guides in six languages are available on MakerWorld.

Inspired by five petals.
After The Riverstone and The Scuttle, the next shape came from a flower. The Cinquefoil wraps five soft petals around the round display.
The construction follows The Scuttle, with access from both sides and separate colour accents.

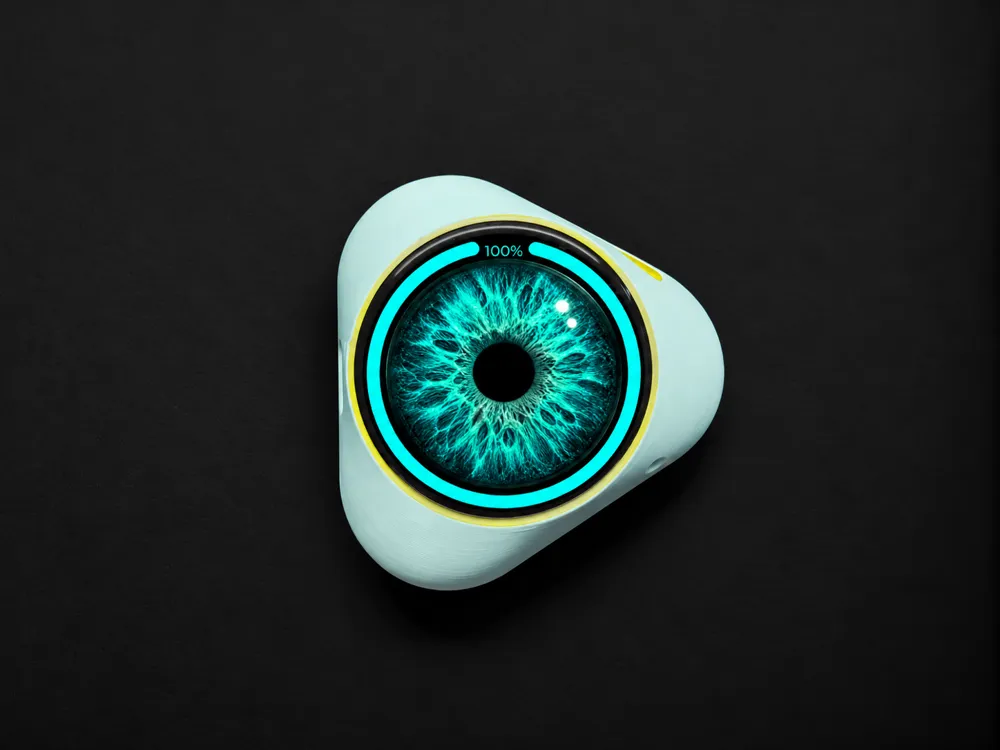

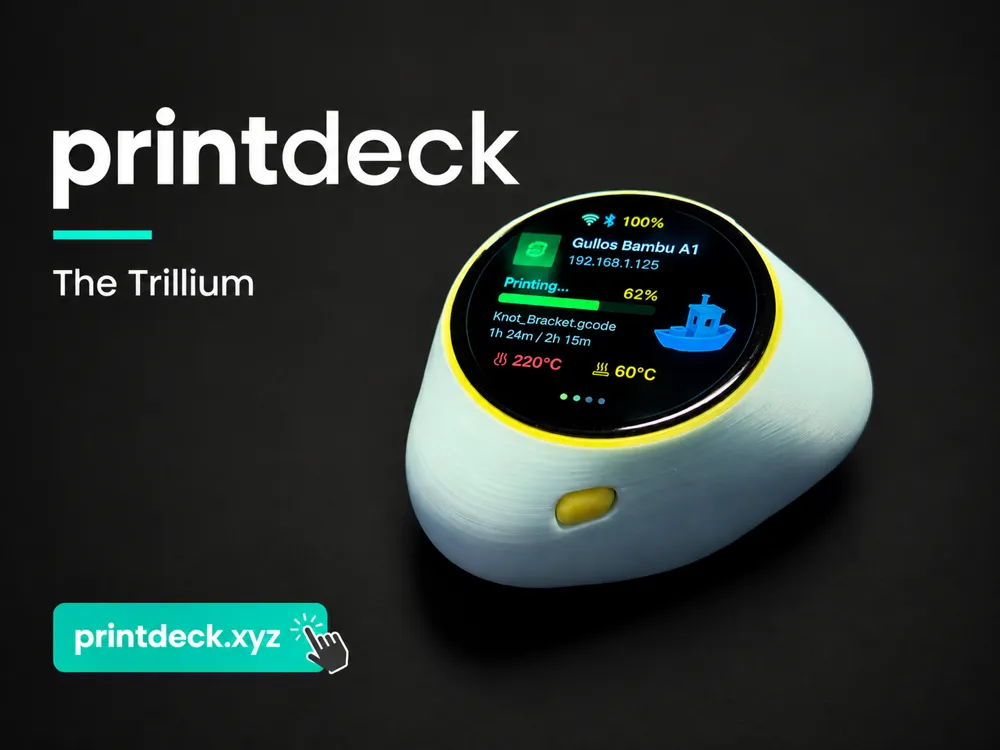

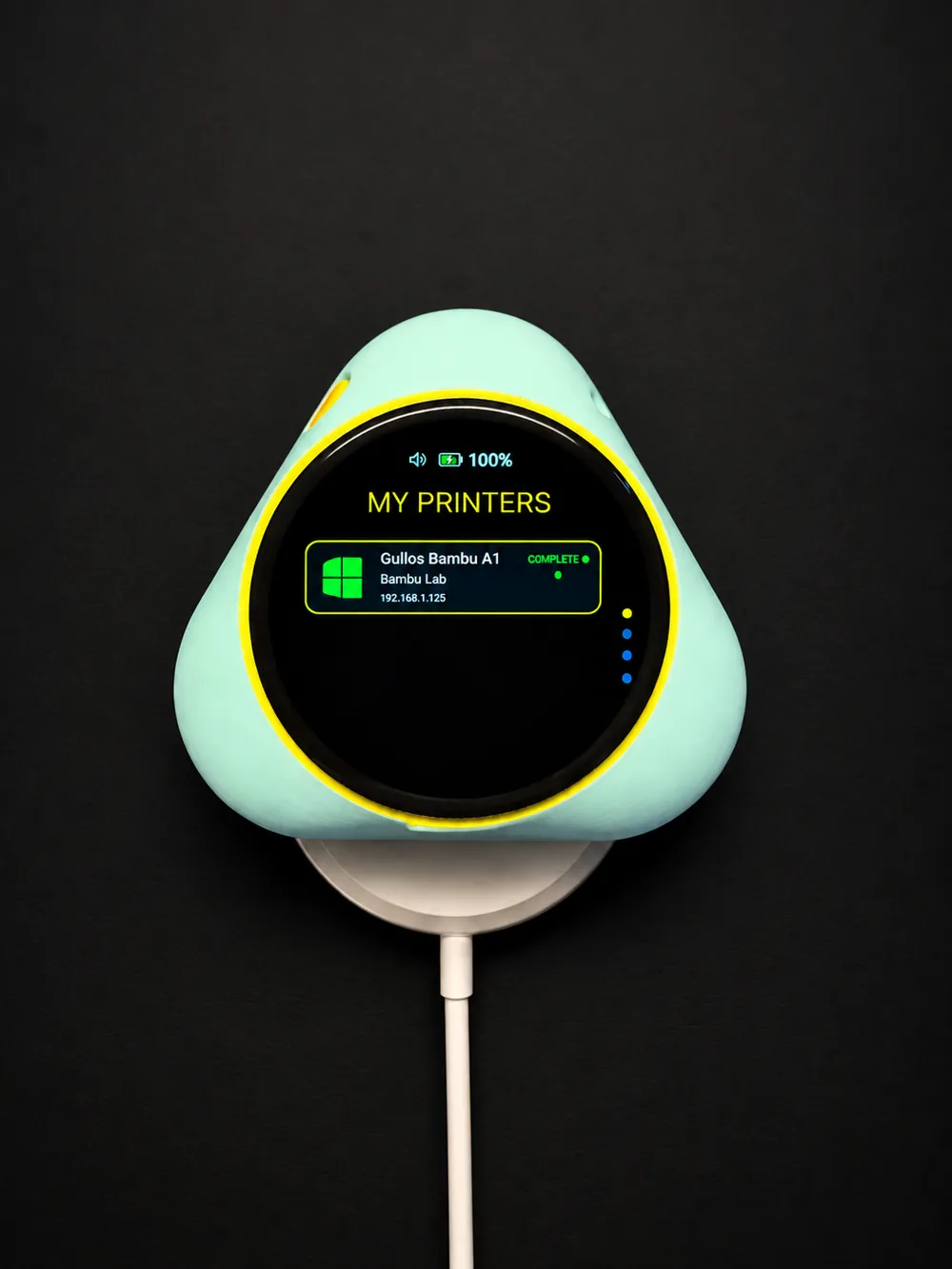

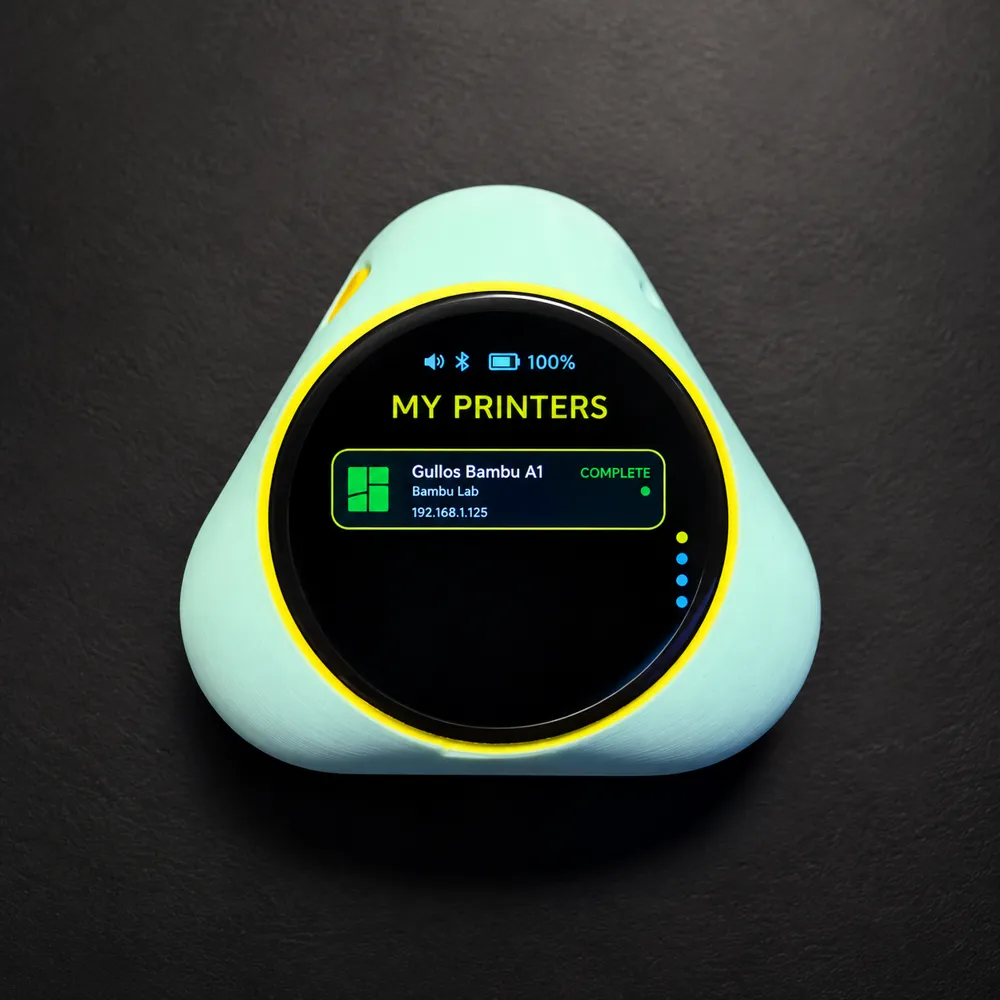

The Trillium
AMOLED 1.75″A rounded triangular frame for your PrintDeck. The Trillium pairs three soft curves with a separate display collar and button for contrasting colours. Access from both sides makes assembly and servicing easier.




Power it through USB-C, or add a protected LiPo battery and Qi receiver for wireless charging. Five optional rear magnets let it attach to a steel surface. The print profile and assembly guides in six languages are available on MakerWorld.

Three petals, a rounded triangle.
The Trillium continues the floral idea with three broad petals. They form a rounded triangle around the same circular display.
The construction follows The Scuttle, with access from both sides and separate colour accents.
The Float
AMOLED 1.75″A round display that appears to float above its base. The Float holds your PrintDeck at a fixed 15° tilt on a slim stem, with the USB-C cable routed through it towards the back. Print it in one colour or add contrasting accents to the screen ring, base band and logo.




Designed for the Waveshare ESP32-S3-Touch-AMOLED-1_75, the case uses five printed parts and eleven M2 × 6 mm countersunk screws. No glue or threaded inserts are needed. Power it through USB-C and fit a compatible slim speaker if you want sound. The print profile and assembly steps are available on MakerWorld.

A screen above the base.
The Float gives the round PrintDeck display its own stand. A narrow stem separates the screen from the base, creating the floating silhouette that gives the case its name.
The stem also carries the USB cable towards the back. Five printed parts screw together around the display, with room for an optional slim speaker. A single colour keeps the shape simple; contrasting accents highlight the screen ring, base and logo.
The Orbit
AMOLED 1.75″A rounded enclosure on a low pedestal base. The Orbit surrounds your PrintDeck with a curved shell and a thin accent band along the join between its two halves. Print it in one colour or highlight the screen ring, shell seam, power button and base logo with contrasting accents.




Designed for the Waveshare ESP32-S3-Touch-AMOLED-1_75, the case uses seven printed parts, eleven M2 × 6 mm countersunk screws and a USB-C extension matching the one shown on MakerWorld. The USB-C connection sits at the back. A flat speaker and a battery compatible with the display module are optional. The print profile and assembly steps are available on MakerWorld.

A rounded shell, a low base.
The Orbit brings the round display and its curved enclosure close to the base. A narrow band follows the shell seam, while the short neck connects the body to its pedestal.
Inside, separate holders secure the display and USB-C extension. The rear connection keeps the cable behind the case. You can add a flat speaker and a compatible battery to suit your setup.
A1 / A1 mini extruder cover
AMOLED 1.75″Bring PrintDeck to the toolhead of your Bambu Lab A1 or A1 mini. This replacement extruder cover holds the round display at the front, with a separate screen ring and button that you can print in contrasting colours.




Give your A1 or A1 mini a face of its own. Follow your print at a glance or bring the toolhead to life with your favourite PrintDeck animations.

A screen on the toolhead.
This cover makes PrintDeck part of the printer itself. The round screen sits on the front of the A1 or A1 mini toolhead, replacing the original extruder cover.
The case, screen ring and button are separate printed parts, so you can match the printer or add a contrasting accent. The photographed build also includes an optional speaker behind the display.
